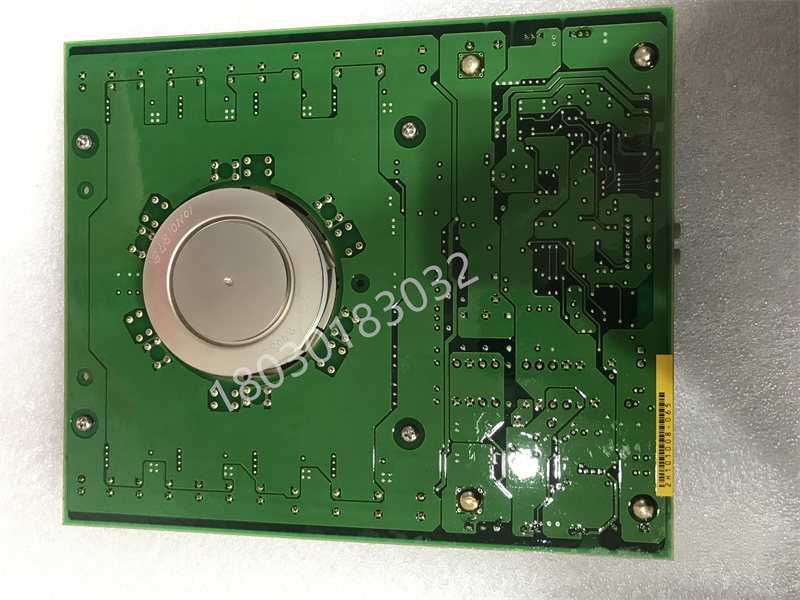

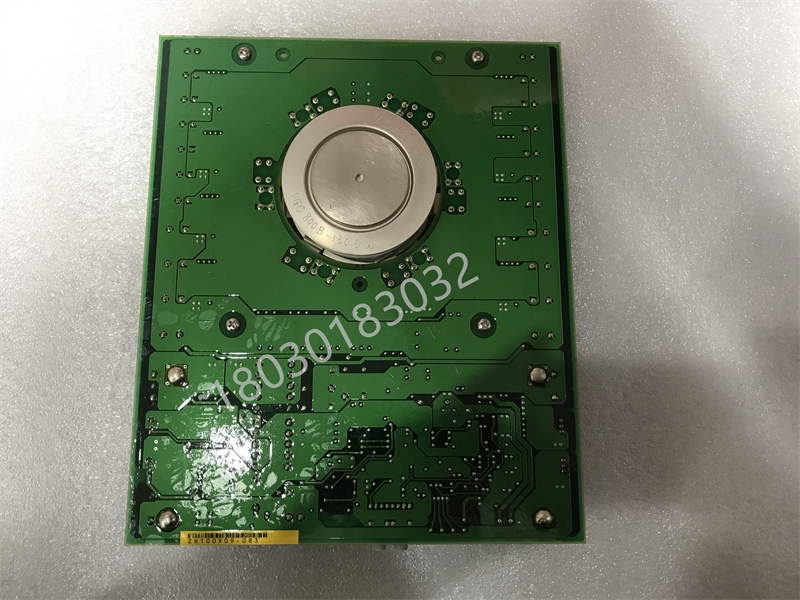

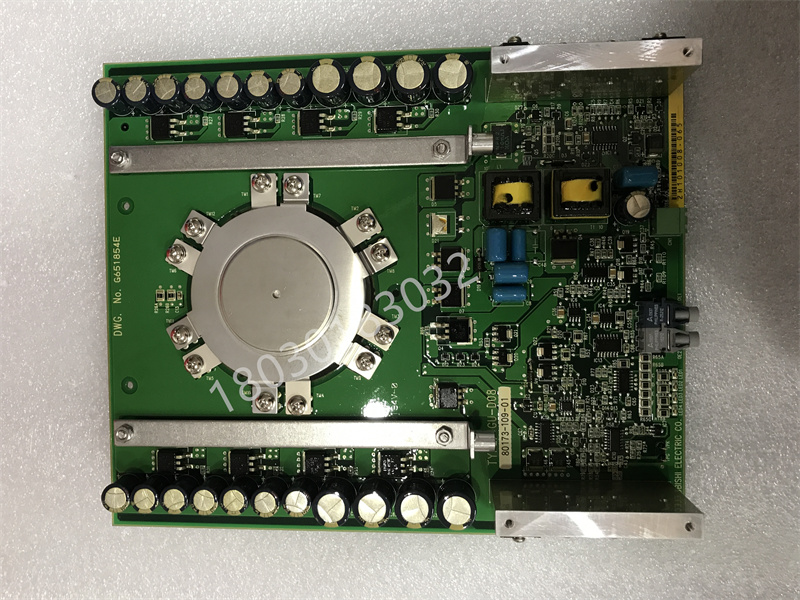

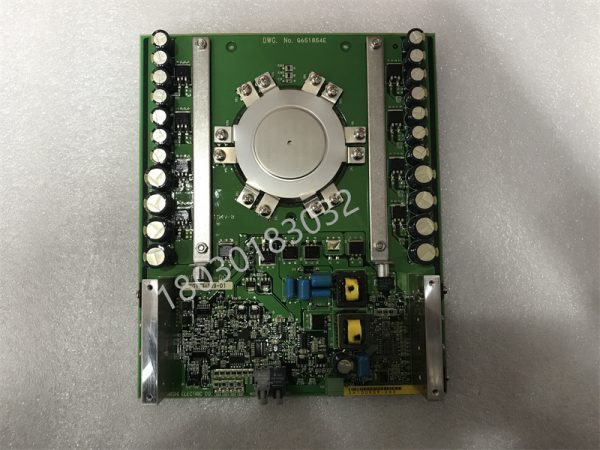

A-B 81001-450-53-R Controllable IGCT Board Control Module

Description

A-B 81001-450-53-R Controllable IGCT Board Control Module
####Product Overview
A-B 81001-450-53-R is a high-performance thyristor (IGCT) driver module, belonging to Allen Bradley (a brand under Rockwell Automation) power electronics module. It is widely used in the fields of industrial automation and control, especially in situations where high precision and high dynamic performance are required.

####Technical specifications
-* * Model * *: 81001-450-53-R
-* * Type * *: IGCT module
-Rated voltage: 1200V
-Rated current: 450A
-Switching frequency: up to 20kHz
-* * Size * *: 192mm × 64mm × 35mm
-* * Weight * *: Approximately 0.5 kilograms
-* * Operating temperature range * *: -25 ° C to+70 ° C

####Functional Features
-* * High efficiency * *: Adopting advanced TrenchSTOP technology ™ Technology with low conduction loss, high efficiency, and low loss.
-High reliability: MTTF (mean time between failures)>1 million hours, suitable for harsh working environments.
-* * High electromagnetic immunity * *: With high electromagnetic immunity, it ensures stable operation in complex electromagnetic environments.
-* * Simple Control Interface * *: Provides a simple control interface with status feedback, supporting AC or DC power supply voltage.
-Multiple control methods: Accurate voltage and current control can be achieved through methods such as pulse width modulation (PWM) or pulse frequency modulation (PFM).

####Application Fields
-Industrial automation control system: As a key component, it provides stable power drive.
-PLC (Programmable Logic Controller): Used in conjunction with PLC to achieve automation control.
-* * Inverter * *: Provides power drive and control functions in the inverter system.
-Power Control: Used for power control and regulation applications, such as lighting control, heating control, motor control, etc.
-New energy power generation: Used for inverter control in fields such as solar power generation and wind power generation.
-Robot Control: Used in robot control systems to achieve various high-precision and fast response control requirements.
####Protection function
-Overheating protection: prevents module damage due to overheating.
-Overcurrent protection: prevents module damage due to overload.
-Overvoltage protection: prevents module damage due to high voltage.
The A-B 81001-450-53-R module has become an important component in industrial automation and control systems due to its high performance, reliability, and versatility.
