Front Panel Dimensions (Width x Height x Depth):170.3 x 102.6 x 6.0 mm
Installation Depth:45.3 mm
Cutout Size:160.7 x 93.0 mm
Front Panel Sealing:IP65/NEMA 4X (Indoor Use Only)
Weight:0.47 kg
COM1 Port:9-pin female connector: RS232/RS485
COM2 Port:9-pin female connector: RS422/RS485
Flash Memory:4 MB
RAM:512 KB
CPU:32-bit RISC
Real-Time Clock:Yes (Rechargeable Lithium Battery Included)
Display:Monochrome STN LCD, 240×128 pixels, CCFL backlight, estimated life span of 50,000 hours at 25°C
Active Display Area (Width x Height):111 x 61 mm
Touchscreen:Analog
Power Supply:24V DC ± 15%, max 12W
Operating Temperature Range:0°C to +50°C
Storage Temperature Range:-10°C to +60°C
Relative Humidity:20% to 90% RH, non-condensing
Vibration Resistance:Displacement 0.5 mm, 10-55 Hz, 2 hours per axis (X, Y, Z)
Shock Resistance:10G, 11 ms each, 3 times per axis (X, Y, Z)
EMI Compliance:CISPR 22, Class A
ESD Protection:IEC 61000-4-2
RF Immunity:IEC 61000-4-3
High-Frequency Transients:IEC 61000-4-4
Cooling Method:Natural Cooling

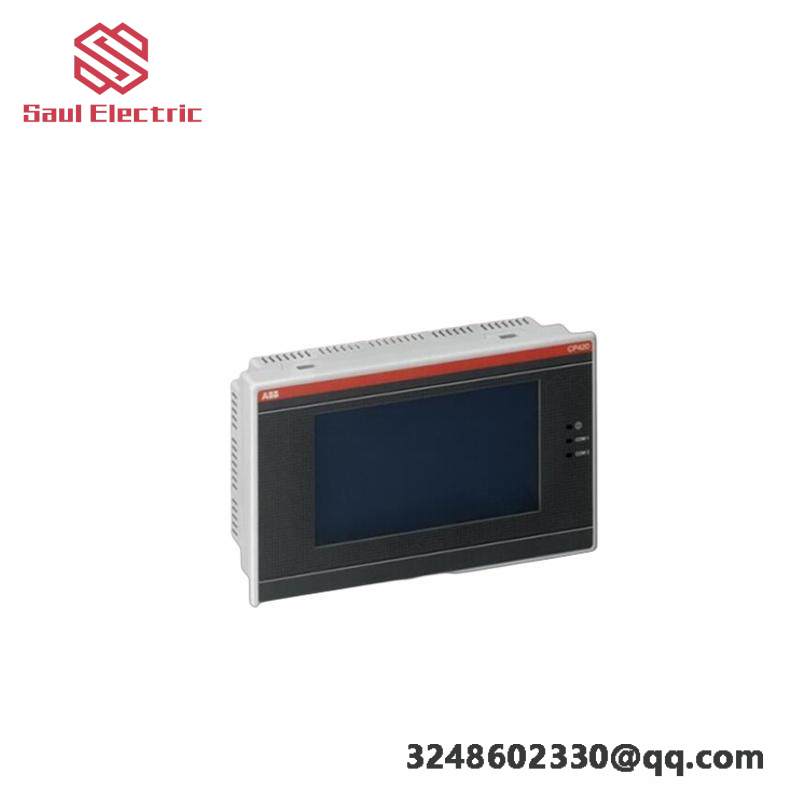

The ABB CP420B Industrial Control Panel is designed for integration into high-performance automation systems. Its robust design ensures reliable operation under harsh conditions.
The panel features a compact footprint, making it ideal for space-constrained installations. The front panel sealing meets IP65/NEMA 4X standards for dust and water resistance, ensuring long-term reliability.
With a monochrome STN LCD display, the CP420B provides clear visual feedback with a backlight life of approximately 50,000 hours at 25°C, minimizing maintenance downtime.
The control panel supports multiple communication protocols including RS232, RS485, RS422, and RS485, enabling flexible connectivity options. The 4 MB flash memory and 512 KB RAM provide ample storage for data logging and recipe management.
Designed for easy installation, the CP420B includes a 9-pin female connector for both COM1 and COM2, facilitating quick setup and configuration. The integrated real-time clock ensures precise timekeeping, even during power outages.
