Description

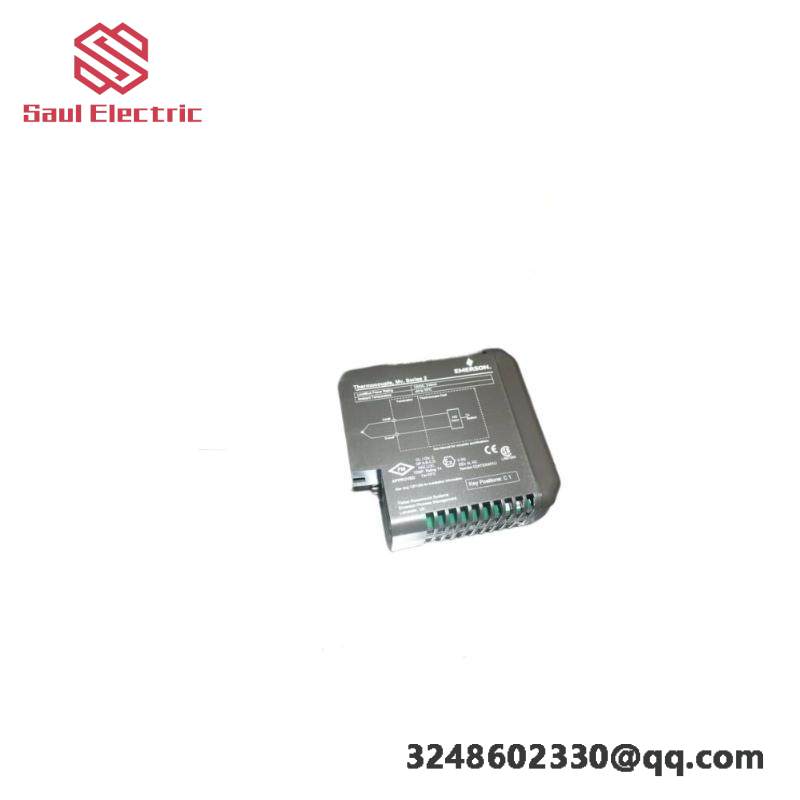

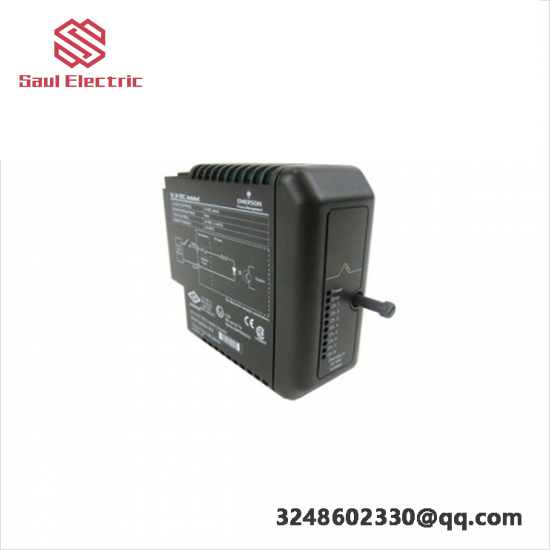

Product ID:KJ3224X1-BA1
Brand:Emerson
Series:DeltaV
Module Type:Thermocouple MV 8 Channel Module
Power Rating:12 VDC at 150 mA
Weight:0.2 kg
Channels:8
Resolution:16 bits
Common-mode Rejection:>120dB@120V AC
Input Range:TC Type Choice (J, K)
Voltage Range:±80mV
Measuring Principle:Sigma-Delta
Update Time:810ms
The Emerson KJ3224X1-BA1 Thermocouple Measurement Module is engineered for demanding industrial applications, offering unparalleled precision and reliability.
With eight independent channels, this module allows for comprehensive monitoring of multiple temperature points simultaneously.
Its 16-bit resolution ensures accurate measurements within a ±80mV range, making it suitable for a wide array of thermocouple types including J and K.
Featuring optical isolation and a high common-mode rejection ratio, it provides excellent immunity against electrical noise, ensuring stable operation even in the most challenging environments.
Designed with durability in mind, the module supports up to 100Ω wire loop resistance, enhancing its flexibility in various installation scenarios.
Additionally, its efficient design minimizes power loss, with a module update time of 810ms and a power consumption rate optimized for continuous operation.
