GE IS200EDCFG1B EX2100 DC Feedback Board

Description

GE IS200EDCFG1B EX2100 DC Feedback Board
Description:

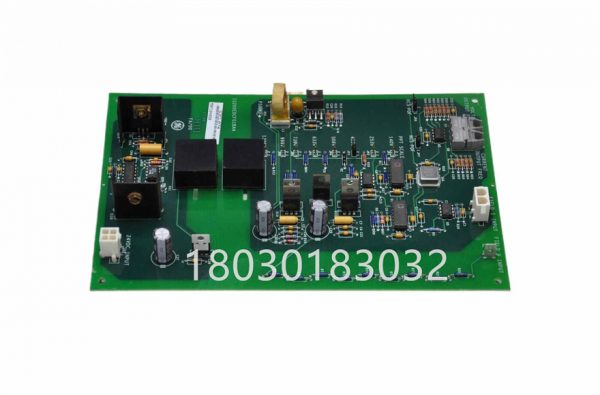

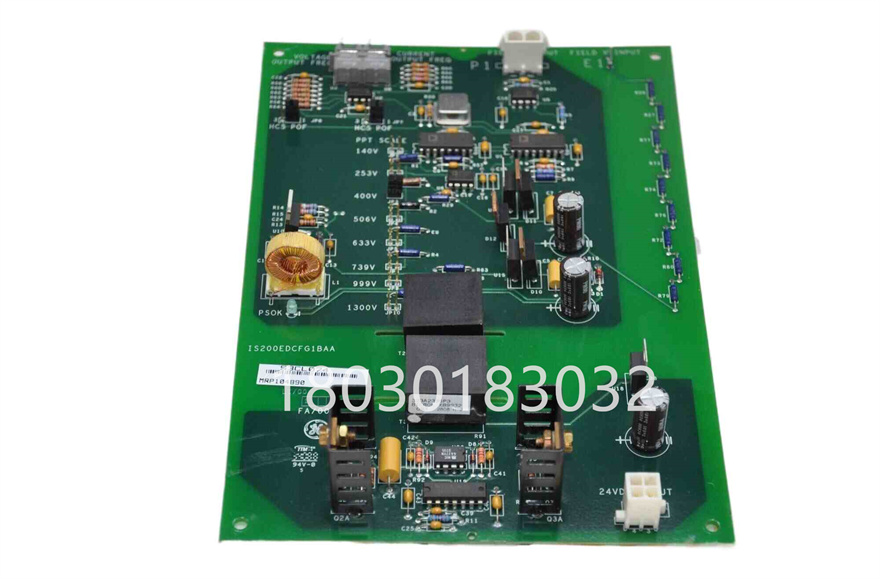

IS200EDCFG1B is part of GE EX2100 Excitation controller series board. Meanwhile, it is a DC output and feedback board.
The EDCF board measures field curent and field voltage at the SCR bridge, andinterfaces to the EISB board in the control panel over a high-speed fiber-optic linkThe fiber-optics provides voltage isolation between the two boards, and high noiseimmmunity. Field current is measured using a shunt in the dc field circuit. The fieldvoltage feedback circuit provides seven selector settings to scale down the bridgevoltage, depending on the type of bridge application.

Realted items:
IS200BAIAH1BEE GE Bridge Application Interface Board
IS200BICIH1ADB  Bridge Interface Controller Board (BICI)
IS200BICLH1BBA Speedtronic IGBT Drive/Source Bridge Interface Board
IS200BPIAG1AEB MKVI IGBT Drive Bridge Interface Board BPIA GE Speedtronic
IS200BPIBG1AEB Phase Logic Module/ IGBT Drive Bridge Personality Interface
IS200BPIIH1AAA speedtronic printed circuit board
IS200CABPG1BAA speedtronic printed circuit board
