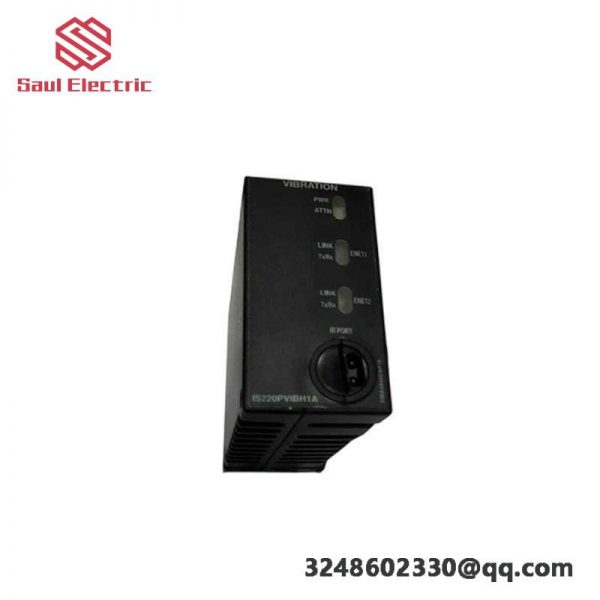

GE IS220PVIBH1A 336A4940CSP16 – Industrial Vibration Monitoring Module

Description

Ambient Temperature Range:-30 to 65 °C

Board Compatibility:Vibration Terminal Board (TVBA)

Channels:Thirteen for Proximity and Vibration

Common Mode Voltage:Min. 5 VDC

Dimensions:3.25″ high x 1.65″ wide x 4.78″ deep

Frame Rates:3.125, 6.25, 12.5, 25, 50, and 100 Hz

Revisions:Rev. A, Rev. B, Rev. C, Rev. D

Model Number:IS220PVIBH1A 336A4940CSP16

LED Indicators:4 Probe Power -24 VDC, 12 mA load per transducer

Status LEDs:Attn, Pwr, Link, TxRx

    This robust proximity and vibration detection module from General Electric is built to last, withstanding harsh industrial environments. It is specifically designed for integration into GE’s Mark VI series systems, providing reliable and accurate data on machine conditions. With thirteen channels dedicated to monitoring both proximity and vibration, this module ensures comprehensive coverage of your machinery’s health status.

    Each module includes LED indicators for probe power, attention, power, link, and transmission/reception statuses, allowing for quick visual assessment of system operation. The unit operates with a minimum common mode voltage of 5 VDC and supports various frame rates to accommodate different application needs.

    For installation, the module can be easily integrated into your existing system with its vibration terminal board compatibility. The compact design ensures it fits within tight spaces without compromising performance.

    Upgrade your industrial control systems with this high-quality detection module from GE, ensuring enhanced safety and efficiency for your operations.
