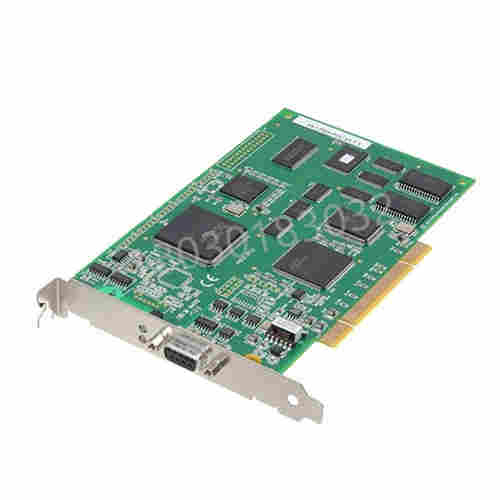

SST-PB3-PCU Network Interface Module

Description

SST-PB3-PCU Network Interface Module
technical specifications
Brand: Molex.
Model: SST-PB3-PCU.
Working voltage: 24V.
Communication protocol: PROFIBUS DP.
Communication speed: 9.6 Kbaud to 12 Mbaud.
Number of channels: Dual channels.
Working temperature: 0 ° C to+60 ° C.
Storage temperature: -40 ° C to+85 ° C.
Humidity: 5% to 95% RH (non condensing).
Size: 127mm x 100mm x 50mm.
Weight: 0.3kg.

Functional Features
High performance control and reliability: Supports simultaneous execution of PROFIBUS DP master, slave, and FDL (Layer 2).
Easy to program: Programming is simple and convenient, making it easy for users to configure and debug.
Rich I/O interfaces: providing 200 I/O points to meet various application needs.
High speed data transmission: The communication speed can reach 12Mbps, ensuring real-time and stable data transmission.
Diagnostic function: Equipped with diagnostic LEDs for system status, watchdog timeout, and communication status.
Strong compatibility: supports multiple operating systems, including Windows 7、Windows 8/8.1、Windows Server 2003、Windows Server 2008、Windows Server 2012、Windows Vista And Windows XP.
Easy to install: using standard PCI interface, supporting plug and play functionality.
High reliability: Suitable for industrial environments, capable of stable operation within a temperature range of 0 ° C to+60 ° C.
application area
Industrial automation: used for data collection and control of automated production lines to improve production efficiency.
Process control: a process control system suitable for industries such as petroleum, chemical, and pharmaceutical.
Transportation: Used for vehicle monitoring and traffic signal control.
Energy management: used to monitor power systems and energy distribution equipment.

precautions
Installation environment: Ensure that the module is installed in a dust-free, dry, and well ventilated environment, avoiding high temperatures, high humidity, or corrosive gases.
Electrical connection: Connect power and signal lines correctly to avoid module damage or performance degradation caused by wiring errors.
Regular maintenance: Conduct regular equipment maintenance and inspections to promptly identify and address potential faults or issues.
The SST-PB3-PCU network interface module has become an important component in industrial automation and control systems due to its high performance, multifunctionality, and high reliability.
